DC-6GHz 20W Dummy Load / Termination Load N Female

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: DC6GHz 20W Dummy Load Termination Load N Female
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-LD-6G-20W-ONf-R

Certification : ISO9000 ROHS

Place of Origin : CHINA

MOQ : 5 PCS

Price : negotiation

Payment Terms : D/A, D/P, T/T, L/C

Supply Ability : 500pcs per day

Connector : N Female

Coloer : Black

Application : DAS BTS

Frequency : DC-6GHz

Contact Now

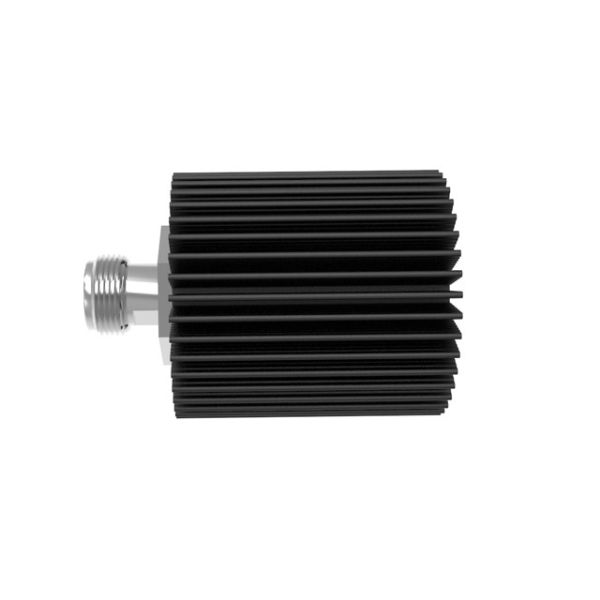

DC-6GHz 20W Dummy Load /Termination Load

Part Number	VN-LD-6G-20W-ONf-R
Operating Frequency ( MHz )	DC-6000
Impedance ( Ohm )	50
VSWR	≤1.25
Application	Indoor
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	20

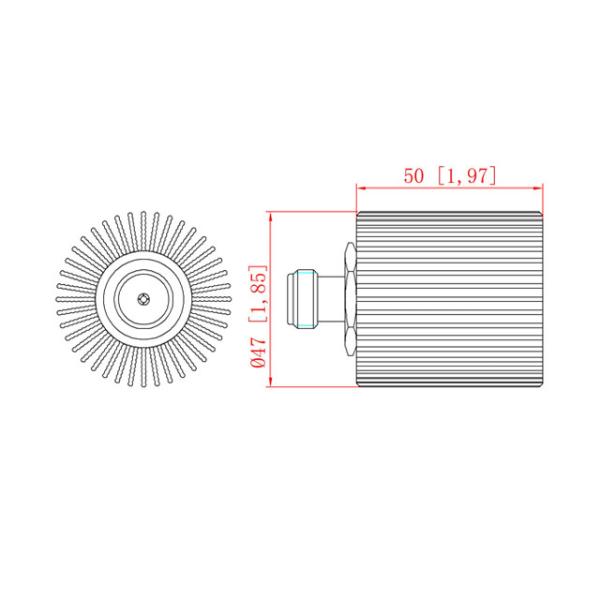

Dimension (mm)(L×W×H, excl connector)	Φ47X50
Packing Dimensions(mm)(L×W×H)	65X65X85
Packing Carton Size(mm)(L×W×H)	350X350X185
ROHS Compliance	Yes
Revision	R1

DC-6GHz 20W Dummy Load / Termination Load N Female
