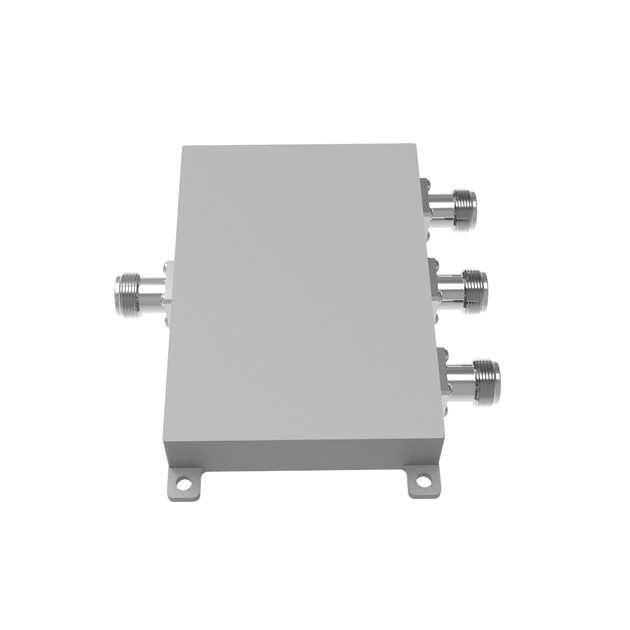

350-520MHz 3 Way N Female Wilkinson Power Divider

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 350520MHz 3 Way N Female Wilkinson Power Divider
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PD-035052-ON3

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Interface : N Female

Frequency Range : 350-520

VSWR : ≤1.20

Impedance : 50

Split Loss : ≤5.1

Application : Indoor

ROHS : Compliance

Isolation : ≥22

Contact Now

350-520MHz 3 Way N Female Wilkinson Power Divider

Part Number	VN-PD-035052-ON3
Operating Frequency ( MHz )	350-520
Impedance ( Ohm )	50
VSWR	≤1.20
Split Loss (dB)	≤5.1
Isolation (dB)	≥22
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Average Power (Watt, max)	50(Power dividers) / 2(combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	84×118×21
Net Weight (g)	465±5%
ROHS Compliance	Yes

Product Tags:

N Female Wilkinson Power Divider
